E-Business Suite R12.0.1 Installation
In this post I am going to demonstrate how to install EBS R12.0.1. The steps are the same for R12.1.1 as well.
VMware Virtual Machine Used Configuration:
* 1 TB Hard Disk Drive
* 8 GB RAM
* NIC set to host only
* Red Hat Linux 5 Operating System
* Oracle E-Business Suite R12.0.1
* Hostname is node1.example.com
* IP address is 192.168.5.105
In order to start we will be needing the following rpms:
rpm -ivh glib-* --nodeps --force
rpm -ivh libstdc* --nodeps --force
rpm -ivh libXp* --nodeps --force
rpm -ivh sysstat* --nodeps --force
rpm -ivh kernel* --nodeps --force
rpm -ivh glibc* --nodeps --force
rpm -ivh gcc* --nodeps --force
rpm -ivh libaio* --nodeps --force
rpm -ivh gnome* --nodeps --force
rpm -ivh control* --nodeps --force
rpm -ivh unixODBC* --nodeps --force
rpm -ivh libmawt* --nodeps --force
rpm -ivh libXau* --nodeps --force
rpm -ivh libxcb* --nodeps --force
rpm -ivh libX11* --nodeps --force
rpm -ivh libXext* --nodeps --force
rpm -ivh libXst* --nodeps --force
rpm -ivh libXi* --nodeps --force
rpm -ivh libXt* --nodeps --force
rpm -ivh libXp* --nodeps --force
rpm -ivh libmng* --nodeps --force
rpm -ivh qt* --nodeps --force
rpm -ivh pdksh* --nodeps --force
rpm -ivh gdm* --nodeps --force
rpm -ivh gdbm* --nodeps --force
rpm -ivh libgomp* --nodeps --force
rpm -ivh redhat* --nodeps --force
rpm -ivh util-linux* --nodeps --force
rpm -ivh gcc* --nodeps --force
rpm -ivh compat* --nodeps --force
rpm -ivh libgcc* --nodeps --force
rpm -ivh make* --nodeps --force
rpm -ivh elfutils* --nodeps --force
ldconfig -v
Additionally you will also need to perform the following task
useradd -s /sbin/nologin mockbuild
And then install the rpm
rpm -ivh mock* --nodeps --force
Apart from the above mentioned rpms you will also need to install the following rpms as the root user:
openmotif21-2.1.30-11.EL5.i386.rpm
binutils-2.17.50.0.6-9.0.1.el5_x86_64.rpm
xorg-x11-libs-compat-6.8.2-1.EL.33.0.1.1.i386.rpm
The above mentioned roms can be downloaded from https://oss.oracle.com/projects/compat-oracle/files/Enterprise_Linux/
As the root user navigate to the folder containing the downloaded rpms and install them. In my case the download folder was /rpms hence I executed the following commands
cd /rpms:
rpm -ivh binutils-2.17.50.0.6-9.0.1.el5_x86_64.rpm --nodeps --force
rpm -ivh openmotif21-2.1.30-11.EL5.i386.rpm --nodeps --force
rpm -ivh xorg-x11-libs-compat-6.8.2-1.EL.33.0.1.1.i386.rpm --nodeps --force
Make sure that the entries of the /etc/hosts are correct and mapped with the proper ip address for eg:
127.0.0.1 localhost.localdomain localhost
192.168.5.105 node1.example.com node1
Once the above changes have been done do a ping test to confirm that the ip are mapped properly by executing the following commands:
ping node1.example.com
ping localhost
Make sure the hostname is entered correctly in the /etc/sysconfig/network. In my system it had the following entry :
NETWORKING=yes
NETWORKING_IPV6=no
HOSTNAME=node1.example.com
GATEWAY=192.168.5.105
If the /etc/sysconfig/networking/profiles/default/network is present then delete it using the command:
rm -rf /etc/sysconfig/networking/profiles/default/network
In the /etc/sysctl.conf make the following entries:
kernel.shmall = 4294967296
kernel.sem = 256 32000 100 142
kernel.shmni = 4096
fs.file-max = 131072
net.ipv4.ip_local_port_range = 10000 650003
net.core.rmem_default = 262144
net.core_rmem_max = 4194304
net.core.wmem_default = 262144
net.core_wmem_max = 4194304
In order to apply the above changes execute the command:
/sbin/sysctl -p
Next make the following entry in the /etc/security/limits.conf
* hard nofile 65535
* soft nofile 4096
* hard nproc 16384
* soft nproc 2047
In the /etc/resolv.conf add the following entries (do not remove the existing ones):
options attempts:5
options timeout:15
No download p6078836_101330_LINUX.zip from oracle support and extract it. In my case it was in the /patches and upon extraction it got extracted in /patchess/6078836. It created the following to files:
README.txt and libdb.so.2
Do the following step to apply the patch:
cp /pathces/6078836.libdb.so.2 /usr/lib
cp /pathces/6078836.libdb.so.2 /usr/lib64
Create the necessary links:
ln -s /usr/X11R6/lib/libXtst.so.6.1 /usr/lib/libXt.so.6
unlink /usr/lib64/libXtst.so.6
ln -s /usr/X11R6/lib/libXtst.so.6.1 /usr/lib64/libXt.so.6
The port number 6000 is used by the OPMN of the Application Server. Ensure that it's free by executing the command:
netstat -a | grep 6000
If the above command returns nothing then it means that the port is free
Next create the necessary directories. We will extract the files in /stage and the base directory is going to be /u01/oracle
mkdir -p /stage
mkdir -p /u01/oracle
Create the user and groups to perform the installation. Here a single user named oracle will be the owner of both the database home and the applications server home.
groupadd oinstall
useradd -g oinstall oracle
passwd oracle
Grant the necessary permissions.
chown -R oracle:oinstall /u01
Here I have downloaded all the necessary files from oracle support and stored them in the /stage folder. We will extract them using the following command:
cd /stage
unzip \*.zip
This should successfully extract 54 archives.
Now start the installation process:
cd /startCD/Disk1/rapidwiz
./rapidwiz

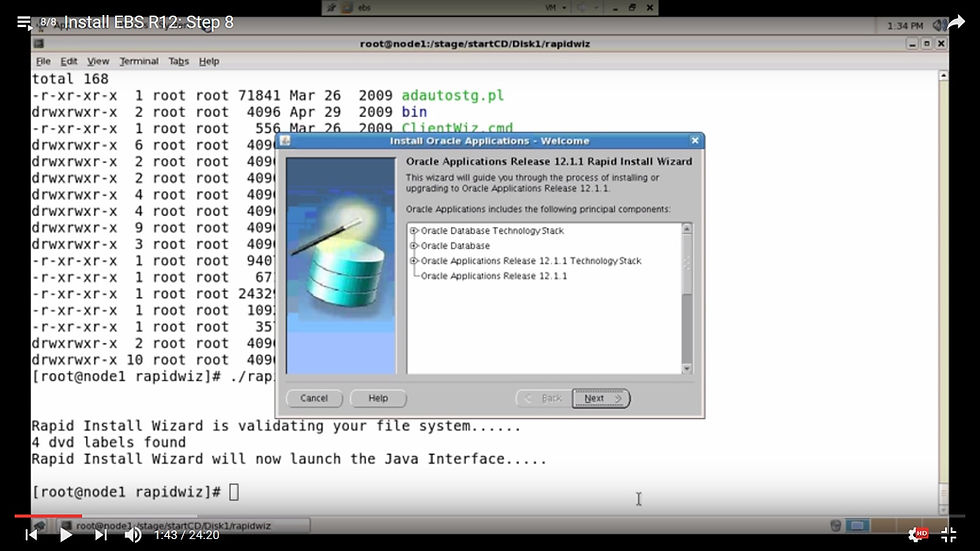

The Welcome screen will launch:

Next it will prompt you for the type of installation you wish to perform. Here we are not opting for Express Installation so we will leave the option unchecked:

In the next step it will ask for oracle support username and password. We will leave this blank.

Then it will prompt which type of configuration is this. Here we are performing the installation for the first time and hence we will go with the new configuration option. Had this been a 2-tier installation and we had already installed the database stack in a machine then we would have to point to that configuration file in order to perform installation of the application server.

It will prompt you with the option to change the default port number in the next screen. In case the default ports are in use you can select a numeric value here and it will be added to the current port number:

Next it will prompt you for the database node details. Be careful about changing the default username and password. In our case the username will be oracle and the password will be whatever you provided at the time of creating the user:

Then it will ask the details of the promary application node. Here also remember to change the default username and password to oracle:

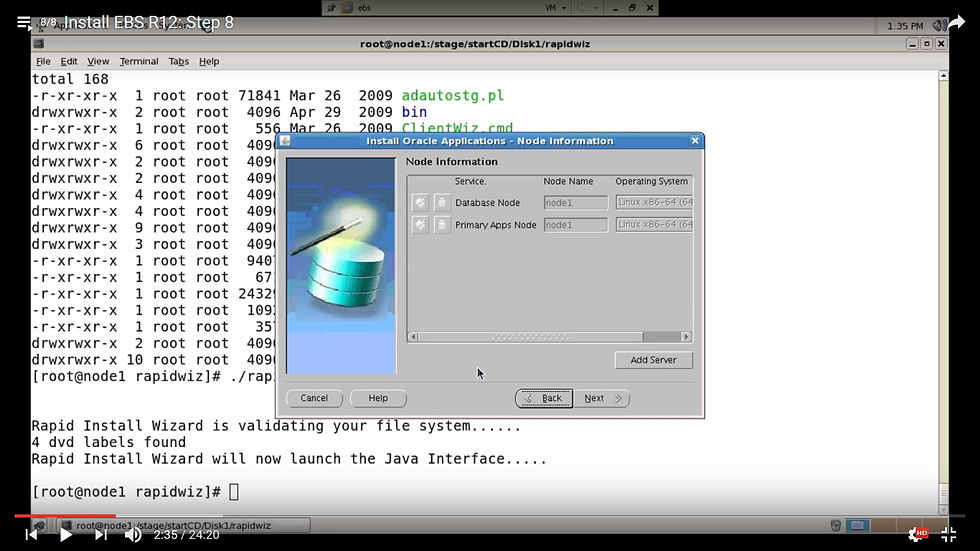

Now it will allow the option of adding additional secondary application server. In case you want seperate dedicated servers for the form services or concurrent services you can click on the "Add Server" button and specify them. Here we are not going to do so.

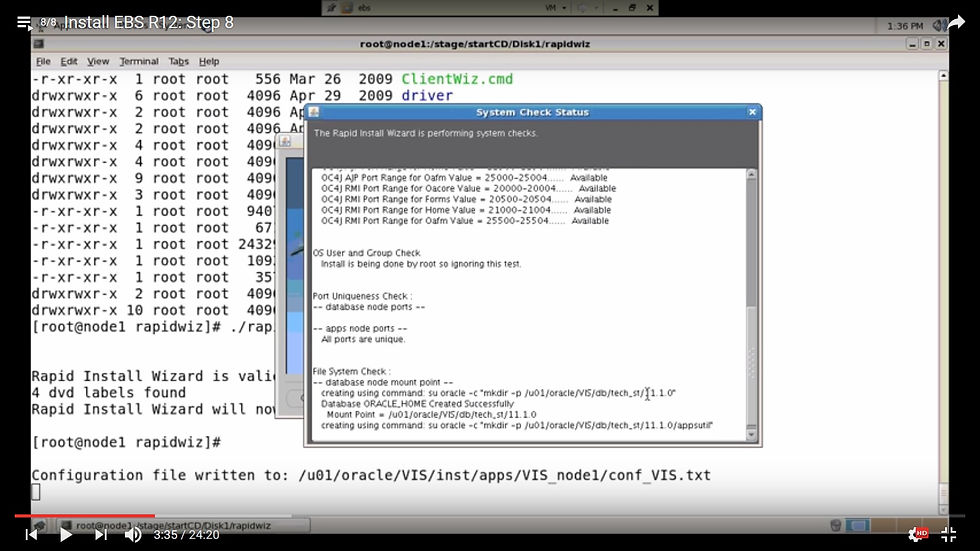

It will then perform a pre-requisite check which might take some time:

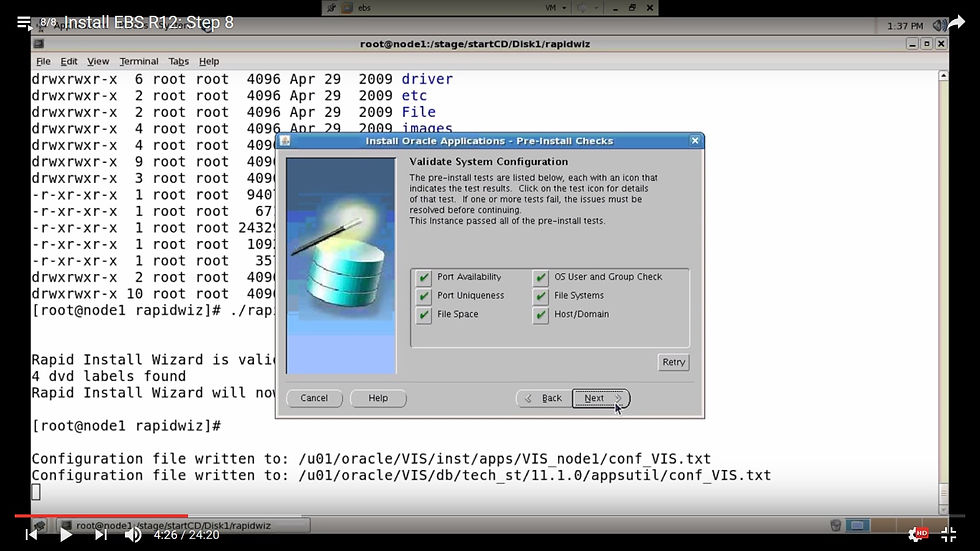

If everything has passed it will give a screen as follows, if not you will have to fix the issues and retry:

It will give you a summary screen:

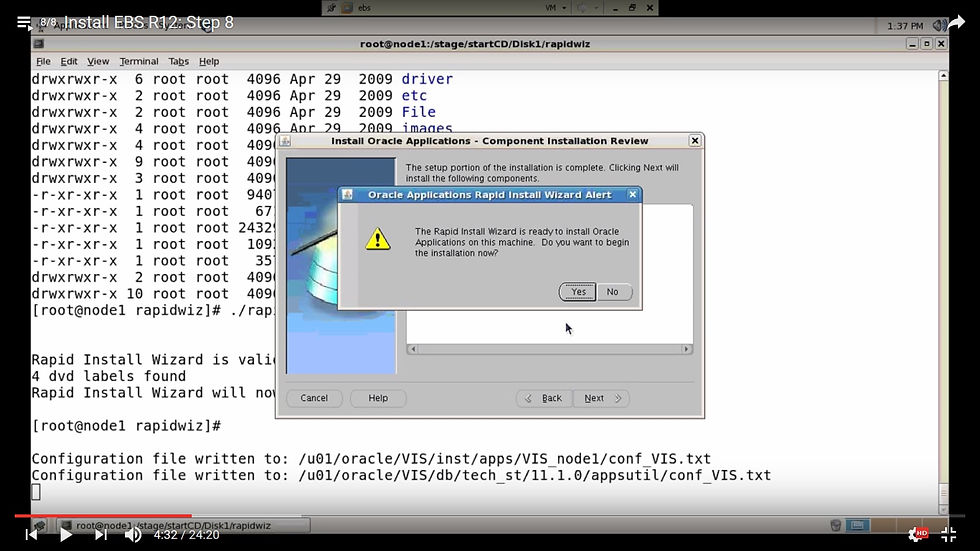

Then you will get a pop up screen asking for confirmation:

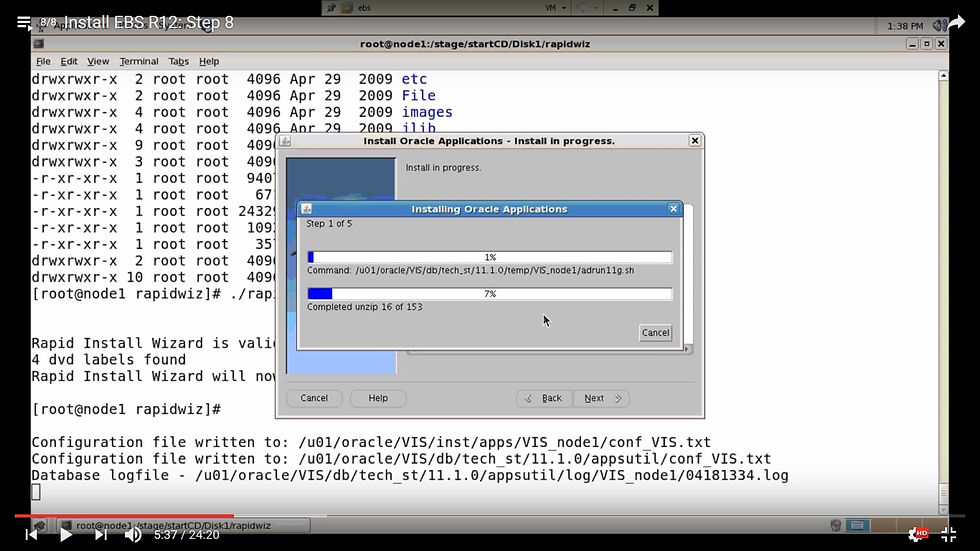

Then the installation process will start:

After the installation succeeds then you can access the homepage using the URL:
http://<hostname>:8000
In our case it will be
http://node1.example.com:8000

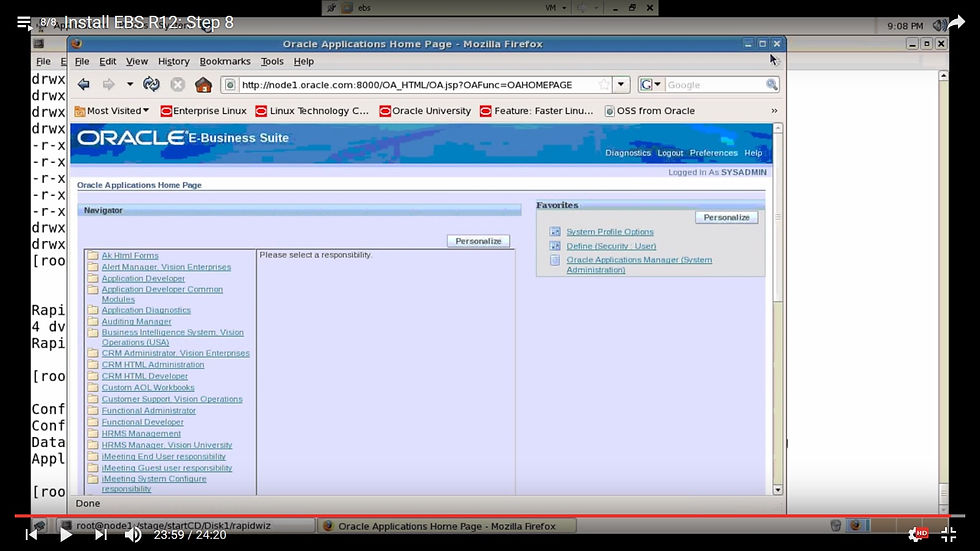

Use the username sysadmin and password sysadmin to login:

You have successfully installed EBS R12.1 !!!
